_____________________________
The thin rim wheel is for face grinding carbide tipped saws with minimum tooth clearance
between  the  face and back of the tooth. This wheel  is  generally  used  to  face  sharpen
carbide saws with more than 80  teeth. It is a 400 grit, 100 concentration wheel recommend
for finish sharpening saws that require a fine finish.   It  measures  6”in diameter. The arbor
dimension is 1-1/4” and the max RPM is 6000.

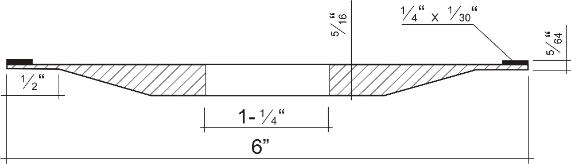

US55022    6" THIN RIM DIAMOND WHEEL 400 GRIT
    (1/32" + 25% of diamond   thickness)
_____________________________
This  wheel is used for face grinding  carbide  tipped saw blades,  router bits  and shaper
cutters.  It  is a 400  grit, 100 concentration wheel recommend for finish  sharpening  that
requires a fine finish.  It  measures  6” in diameter with an arbor dimension  of 1-1/4” and
the max RPM is 6000. This wheel comes standard with the US-550 Universal sharpener.

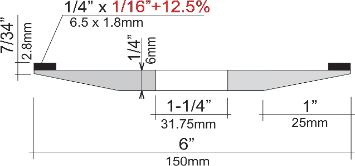

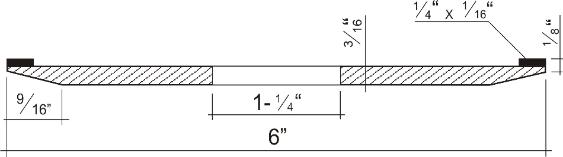

US55020    6" DIAMOND WHEEL 400 GRIT  (1/16" +12.5% of diamond thickness)

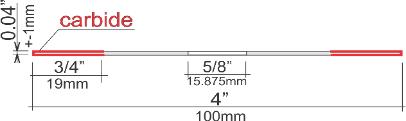

US55026    4" DIAMOND WHEEL 180 GRIT
     (for steel and carbide hole saws)
This diamond wheel is for sharpening steel and carbide hole saws. It is a 180 grit. It
measures 4” (100mm) in diameter and is 3/64" (1MM) thick. The arbor dimension is
20mm and can be reduced from 20mm to 5/8" with bushing. The max RPM is 6000.
_____________________________
This wheel is used for face rough grinding before fine finish grinding of large carbide tipped
router bits  and shaper cutters.  It is a 120 grit, 100 concentration wheel.  It measures  6” in
diameter with an arbor dimension  of 1-1/4” and the max RPM is  6000.
US55021    6" DIAMOND WHEEL 120 GRIT  (1/16" + 12.5% of diamond thickness)
________________________________________
Saw blade
sharpener
Router bit
and
hole saw
sharpener
Shaper cutter
sharpener
US-550 PRO
sharpening
system
US-550 PRO
universal
sharpener
and
Attachments
Contact us
Home
About us
Special offer
Sharpening
rate
guide
Make
money
Frequently
Asked Questions
Supplies and
accessories
Parts of
US-550
Warranties
Shipping
How to pay
Grinding
Wheels
and
Bushings
Video
US-550 PRO
www.UniversalSharpener.com
Dealers
GRINDING WHEELS AND BUSHINGS

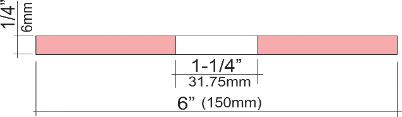

US55028    6" GRINDING WHEEL 60 GRIT  FOR  STEEL
_____________________________
This wheel is used for  grinding steel saw blades, router bits and shaper cutters. It is a 60
grit. It measures 6” in diameter with an arbor dimension of 1-1/4” and a max RPM of 4000 .
_____________________________
Do not forget to buy
BUSHING !!
item # US55027
US55033     DIAMOND  DRESSER
_____________________________
This wheel dresser is recommended for
truing grooved and bumpy Silicon
Carbide grinding wheels (item # 55028).
Is not recommended for diamond
grinding wheels!
US55029      BUSHING of  6" Wheel ( OD: 1-1/4"  -    ID: 5/8" )
OD - outside diameter: 1-1/4"
ID - inside diameter:        5/8"
Thickness:                    3/16"
Material:                 Aluminum
_____________________________
US55027      BUSHING of hole saw wheel ( OD: 20mm  -    ID: 5/8" )
_____________________________
OD - outside diameter: 20mm
ID - inside diameter:        5/8"
Thickness:          3/64" (1mm)
Material:                         Steel
Do not forget to buy
BUSHING
item # US55029
and DRESSER !!
item # US55033
ONLY $84.95
ONLY $84.95
ONLY $98.95
ONLY $36.95
ONLY $31.95
ONLY $9.95
ONLY $4.95
ONLY $4.95
Shipping anywhere in lower
48 states and Canada
Shipping anywhere in lower
48 states and Canada
Shipping anywhere in lower
48 states and Canada
Shipping anywhere in lower
48 states and Canada
Shipping anywhere in lower
48 states and Canada
Shipping anywhere in lower
48 states and Canada
Shipping anywhere in lower
48 states and Canada
Shipping anywhere in lower
48 states and Canada
Do not forget to buy
BUSHING
item # US55029
and
CLEANING STICK!!
item # US55032
Do not forget to buy
BUSHING
item # US55029
and
CLEANING STICK!!
item # US55032
Call us:
404-663-8270
HaskPro, LLC
a sharp edge for success
Do not forget to buy
BUSHING
item # US55029
and
CLEANING STICK!!
item # US55032
_____________________________

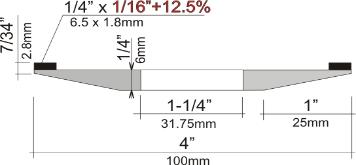

US55023   4" DIAMOND WHEEL 400 GRIT (1/16" +12.5% of diamond thickness)
ONLY $74.95
Do not forget to buy
BUSHING
item # US55029
and
CLEANING STICK!!
item # US55032
This wheel is used for face grinding of small and middle size of carbide tipped router bits.
It is a 400 grit, 100 concentration wheel recommend for finish sharpening that requires a
fine finish. It measures 4” in diameter with an arbor dimension of 1-1/4” and the max RPM
is 6000.
Shipping anywhere in lower
48 states and Canada
New wheel: 12.5% more of diamond thickness
than competition for less money!
New wheel: 12.5% more of diamond thickness
than competition for less money!
New wheel: 25% more of diamond thickness
than competition for less money!
New wheel: 12.5% more of diamond thickness
than competition for less money!
_____________________________
The thin rim wheel is for face grinding carbide tipped saws with minimum tooth clearance
between  the  face and back of the tooth. This wheel  is  generally  used  to  face  sharpen
carbide saws with more than 80  teeth. It is a 400 grit, 100 concentration wheel recommend
for finish sharpening saws that require a fine finish.   It  measures  7”in diameter. The arbor
dimension is 1-1/4” and the max RPM is 6000.

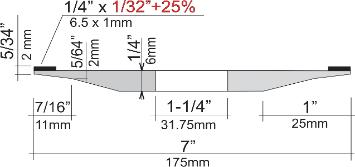

US55024    7" THIN RIM DIAMOND WHEEL 400 GRIT
     (1/32" + 25% of diamond   thickness)
ONLY $118.95
Shipping anywhere in lower
48 states and Canada
New wheel: 25% more of diamond thickness
than competition for less money!
Do not forget to buy
BUSHING
item # US55029
and
CLEANING STICK!!
item # US55032
